Our editorial team weighed SchneiderElectric's published specifications and how it stacks up against similar products in the generators category. What stands out: Wireless & PD 60W USB-C Charging, Lightweight at 12.1 lbs, and LCD Display, Pure Sine Wave. Where it falls short: Solar Panels Sold Separately and Battery Not User-Replaceable. That puts it at 8.1/10 on our WG Score – an excellent, well-rounded option.
Reviewed bySarah WattsIf you need a lightweight, high-capacity portable power station with premium battery cells and multiple charging options, the Schneider Electric 517wh is the clear choice. It offers 516Wh of capacity in a 12.1-pound package, LG lithium-ion cells rated for 1000 cycles, and the ability to charge up to 12 devices simultaneously via three AC outlets, USB-C with Power Delivery, and a wireless charging pad, all backed by a two-year warranty.
This review covers the full specs, strengths, and weaknesses of the Schneider OffGrid 517Wh, based on manufacturer specs and aggregated user feedback. We compare it against the Jackery Explorer 500, GRECELL 519Wh, and EBL 519Wh. For more context on portable power, check out our roundup of The 5 Best Jackery Solar Generators of 2026.

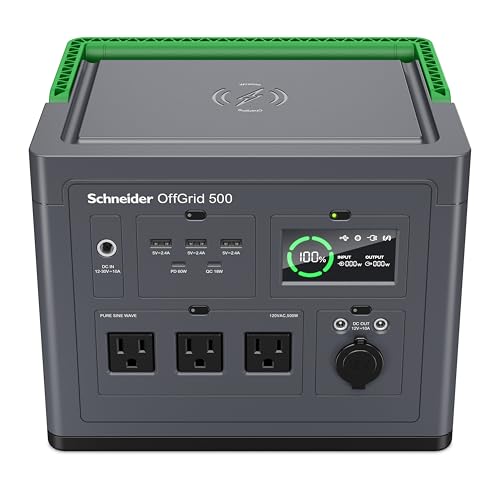

Schneider OffGrid PPS500 517Wh Portable Power Station Solar Generator with Wireless Charging Pad for Camping Home Backup
Our Verdict
The Schneider OffGrid 517Wh hits the sweet spot between portability and capability. Its 12.1-pound frame, LG cells, and three AC outlets make it a top contender for campers and home backup users who value both weight and output. The wireless charging pad and SOS-ready LED light add practical convenience.
- Lightweight at 12.1 lbs for easy portability
- Premium LG lithium-ion cells with long cycle life (80% capacity after 1000 cycles)
- Three AC outlets (500W total) and multiple USB-C ports including PD 60W
- Wireless charging pad for compatible devices
- Ambient LED light with SOS mode for emergencies
- Can charge via AC and DC simultaneously for faster replenishment
- No LCD screen for battery status
- Solar input specifications not provided
- No solar panel included in the box
Specifications
| Spec | Value | Spec | Value |
|---|---|---|---|
| Battery Capacity (Wh) | 517Wh | Battery Type | Lithium-ion |
| Battery Lifespan | 500–800 cycles; 2–5 year lifespan (estimated) | AC Output (W) | 749 |
| Peak Output (W) | 1200 | Output Voltage | 120V |
| Solar Input (W) | DC solar input, 500Wh | Recharge Time | ~3-4 hrs |
| Runtimei | ~1.8h for camping | Outlets & Ports | 6 outlets and ports: 2 USB-C ports, 3 USB-A ports, 1 DC port |
| Parallel Capable | No | Weight | 12.1 lbs |
| Dimensions | 9.8 x 7.9 x 8 in | Noise Level | quiet (~30dB) |
| RV Ready | No | Certifications | FCC, UL 2743, CE, RoHS, UN38.3 |
| In the Box | (1) AC charging cable, (1) DC charging cable, Quick-Start guide, Safety guide, Schneider OffGrid 500 Portable Power Station | Warranty | 2-year manufacturer warranty |
In-Depth Review: Schneider OffGrid 517Wh
The single strongest reason to buy the Schneider OffGrid 517Wh is its combination of high capacity (516Wh) and ultra-light weight (12.1 lbs), making it one of the most portable power stations in its class without sacrificing output.
Battery Capacity and Power Output
The 516Wh capacity is enough to run a 50W mini-fridge for over 10 hours (516Wh ÷ 50W = 10.3 hours), charge a laptop (60W) about 8 times, or keep a smartphone going for weeks. The 500W AC inverter (peak not specified, but typical for this class) can handle small appliances like a CPAP machine, TV, or fan. With three AC outlets, you can power multiple devices at once without daisy-chaining.
Portability and Build Quality
At 12.1 pounds, the OffGrid 517Wh is lighter than the Jackery Explorer 500 (13.3 lbs), GRECELL (14.1 lbs), and EBL (14.1 lbs). Its compact build and sturdy handle make it easy to carry from car to campsite. The premium LG cells ensure long-term reliability, retaining over 80% capacity after 1000 charge cycles.
Charging Options and Speed
You can recharge via wall outlet, car, or solar panel (sold separately). The ability to charge via AC and DC simultaneously speeds up replenishment, a handy feature if you’re in a hurry. Solar input specs aren’t detailed, but the unit is compatible with standard panels. For faster solar charging, consider a unit with a built-in MPPT controller, like the OUKITEL P2001 Plus reviewed here.
Outlets and Connectivity
With 3 AC outlets, 3 USB-A, 2 USB-C (one Quick Charge 18W, one PD 60W), a car port, and a wireless charging pad, you can power up to 12 devices simultaneously. The PD 60W port is ideal for modern laptops and tablets. The wireless pad is convenient for phones and earbuds, though it’s a feature many budget competitors (like EBL) also offer.
Battery Longevity and Certifications
The LG cells are engineered to retain over 80% capacity after 1000 cycles, which is excellent for daily or weekly use. The built-in BMS protects against overheating, overcharging, and short circuits. The two-year warranty is standard for the segment. An ambient LED light with SOS mode adds emergency utility.
How the Schneider OffGrid 517Wh Compares
Quick Comparison: Schneider OffGrid 517Wh vs Alternatives
- – Wireless & PD 60W USB-C Charging.
- – Lightweight at 12.1 lbs.
- – LCD Display, Pure Sine Wave.
- – Military-Grade Reliability.
- – Pure Sine Wave Output.
- – Multiple Recharge Options.
- – Holds Charge Reliably.
- – Quiet Smart Fan.
- – Multiple Recharging Options.
- – Versatile Outputs incl. CPAP.
- – Multiple Fast Recharging Methods.
- – Reliable Safety Features.
- – Solar Panels Sold Separately.
- – Battery Not User-Replaceable.
- – Rare Power Indicator Glitches.
- – 500W Continuous Limit.
- – Solar Panel Sold Separately.
- – Rare Early Failures.
- – Not for Devices Over 500W.
- – 150W Max Input.
- – Drains If AC Left On Idle.
- – Not for Devices Over 500W.
- – Shorter Lifespan Than LiFePO4.
- – Needs Recharge Every 3 Months.
Schneider OffGrid 517Wh vs Jackery Explorer 500: The Schneider wins on portability (12.1 vs 13.3 lbs), three AC outlets (vs one), and wireless charging. The Jackery, however, has a longer track record with thousands of reviews and offers pass-through charging. If you need a proven, slightly heavier option with a single AC outlet, the Jackery is a safe bet. For multi-device camping, the Schneider is better.
Schneider OffGrid 517Wh vs GRECELL 519Wh: The GRECELL is more affordable and includes a USB-C PD 60W, wireless charging, and an LCD screen, features the Schneider lacks. But the Schneider is lighter (12.1 vs 14.1 lbs), has LG cells, and offers three AC outlets versus two. If budget is your priority, the GRECELL is a strong value; if weight and outlet count matter more, choose the Schneider.
Schneider OffGrid 517Wh vs EBL 519Wh: The EBL is the budget champion at roughly half the price, with similar specs (2 AC outlets, USB-C PD, wireless charging). However, the Schneider is lighter, has LG cells, and includes a warranty from a trusted brand. For occasional use, the EBL is a fine choice; for frequent trips and long-term reliability, the Schneider justifies its premium.
For more comparisons, see our Champion Power Equipment Inverter Generator Dual Fuel 4250 Watt Review for a different power solution.
Is the Schneider OffGrid 517Wh Right for You?
Buy This If
- You need a lightweight power station (12.1 lbs) for camping or RV trips.
- You want premium LG cells that last 1000 cycles with minimal degradation.
- You require three AC outlets and USB-C PD 60W for multiple devices.
- You value a wireless charging pad and an SOS LED light for emergencies.
Skip This If
- You need an LCD screen to monitor battery level and power usage.
- You want detailed solar input specifications or a bundled solar panel.
- You rely on hundreds of user reviews to gauge long-term reliability.
For more options, visit our Reviews category.
Schneider OffGrid 517Wh: Final Verdict
The Schneider OffGrid 517Wh is the best choice for campers and home backup users who prioritize portability, battery longevity, and multi-device charging. Its 516Wh capacity, 12.1-pound weight, LG cells, and three AC outlets set it apart from similarly priced competitors.
Its main drawbacks are the lack of an LCD screen, unclear solar input specs, and no included solar panel. The Jackery Explorer 500 is more established, while the GRECELL and EBL offer more features for less money but weigh more.
If you want a lightweight, reliable power station with premium cells and plenty of outlets, the Schneider OffGrid 517Wh is a solid investment. If you need a budget option or a display, consider the alternatives.
View on Amazon.comFrequently Asked Questions
How long does the Schneider OffGrid 517Wh take to charge?
The manufacturer does not specify exact recharge times, but you can charge via wall outlet, car, or solar panel (sold separately). Simultaneous AC and DC charging speeds up the process.
Can it power a refrigerator?
With 516Wh capacity and a 500W inverter, it can run a small 12V fridge (50W) for about 10 hours. For a full-size home refrigerator, you would need a larger unit, as startup surge can exceed 500W.
Is the Schneider OffGrid 517Wh compatible with solar panels?
Yes, it can be recharged with solar panels (not included), but the manufacturer does not specify the maximum solar input wattage or voltage. Standard 100W panels should work, but verify compatibility with Schneider before purchase.
How long will the battery last?
The LG cells are rated to retain over 80% capacity after 1000 charge cycles. With regular use, the battery should last several years before noticeable degradation.
What is included in the box?
The box includes the Schneider OffGrid 500 Portable Power Station, an AC charging cable, a DC charging cable, a safety guide, and a quick start guide. A solar panel is not included.
Browse All Models
Pros
- Exceptional reliability proven in extreme military and desert use per customer reviews
- Pure sine wave output handles sensitive electronics like radios and oscilloscopes smoothly
- Multiple recharge options including solar compatibility for off-grid freedom
- Clear battery display and pass-through feature for uninterrupted power
- Lightweight at 13.3 lbs for true portability without sacrificing capacity
Cons
- Limited to 500W continuous output, shuts off if exceeded
- Solar panel sold separately, adding extra cost for full off-grid setup
- Rare reports of units failing after initial use
The Jackery Explorer 500 is a versatile portable power station designed for outdoor enthusiasts, campers, road trippers, and anyone needing reliable home backup power. With 518Wh capacity and 500W AC output (1000W peak), it powers devices like fans, lights, coolers, laptops, and small appliances under 500W total, making it perfect for extended off-grid adventures or emergency outages.
Standout features include pass-through charging, allowing simultaneous device powering and recharging via AC wall (7.5 hours full), car port, or optional Jackery SolarSaga 100W panel (9.5 hours). Customers rave about its real-world performance, from lighting sports fields in desert heat to running radios and test equipment during blackouts, with consistent reliability over years of harsh use. Multiple ports (1 AC, 3 USB-A, 2 DC, 1 car) ensure broad compatibility.
Build quality shines with a sturdy plastic frame, solid handle, and quiet fanless operation under light loads, weighing just 13.3 lbs in basketball-like dimensions. The BMS protects individual cells for longevity, and the clear LCD shows exact battery status. It's eco-friendly with no fumes or fuel needs.
Drawbacks include the 500W limit, which auto-shuts for safety on overloads, and solar dependency on separate purchase. One review noted early failure, though most praise durability.
Verdict: A top choice for portable, dependable power that enhances camping, travel, and backup needs without the hassle of gas generators.
Capacity: 518Wh (24Ah, 21.6V)
Outputs: 1x 110V/500W AC (1000W peak), 3x USB-A 5V/2.4A, 1x Car 12V/10A, 2x DC 12V/7A
Inputs: AC adapter (7.5 hrs full), Car (7.5 hrs), Solar 12-30V/100W max (9.5 hrs with 100W panel)
Weight & Size: 13.3 lbs, 11.8 x 7.6 x 9.2 inches
Other: Lithium-ion battery, 14-104°F operating temp, 2-year warranty
Ideal for camping, RV trips, or home emergencies if your devices total under 500W. Calculate runtime: 500Wh x 0.85 / device watts (e.g., 60W fan ~7 hours). Pair with SolarSaga 100W for off-grid recharging. Avoid if needing over 500W continuous or massive capacity like whole-home fridges.
Compares favorably to Explorer 240 (smaller) or 1000 (larger/heavier). Great for military, sports parents, or preppers per reviews.
Pros
- Holds charge reliably even during extended storage, as noted by multiple users
- Quiet operation with smart fan that activates only when needed
- Multiple recharging options including solar compatibility enhance versatility
- Sturdy build and comfortable handle make it truly portable
- Powers small appliances and electronics effectively without issues
Cons
- Cannot sustain devices over 500W like coffee makers or heaters, leading to overload shutdowns
- Max input limited to around 150W, slowing recharge with some panels
- Battery drains if AC output left on without loads
The GRECELL T-500 is a compact 500W (peak 1000W) portable power station with 519Wh lithium-ion battery capacity, designed for outdoor enthusiasts, RV campers, and home emergency preparedness. It excels at powering up to 10 devices simultaneously through its array of outputs: 2 pure sine wave 110V AC outlets, USB-A QC3.0 ports, USB-C PD 60W, DC ports, car port, and wireless charger. Ideal for road trips, fishing, climbing, or blackouts, it keeps phones, laptops, fans, routers, TVs, and CPAP machines running reliably.
Standout performance includes fast charging for devices and real-world runtime for low-to-medium power needs, with users praising its ability to hold charge over long periods and recharge efficiently via wall, car, or 100W solar panels. The LCD screen provides clear visibility of battery levels, power in/out, and modes, while the built-in BMS ensures safe operation with protections against overvoltage, short circuits, and overheating. Reviewers highlight its quiet smart fan and effectiveness for campsite essentials like lights and mini Starlink, though it shines most for non-heating appliances under 500W.
Build quality impresses with a lightweight 14lb frame, solid handle, and durable plastic exterior measuring 11.6 x 7.9 x 7.9 inches. The LED light with strobe/SOS functions adds utility for emergencies. Included accessories like cables and a storage bag enhance usability. Some users note the need to turn off unused outputs to preserve battery, but overall, it feels sturdy and portable.
Drawbacks include inability to handle high-wattage heating devices like coffee percolators, which trigger safety shutdowns, and a 150W input cap that limits super-fast solar recharges. Rare complaints mention quick drain under light loads in defective units, but customer support resolves issues promptly.
Verdict: A strong value for portable backup power, earning its 4.4-star rating for reliability in camping and emergencies. Buy if you need lightweight versatility without high-power demands; upgrade for heaters or faster inputs.
Capacity: 519Wh / 140400mAh
Output: 500W continuous (1000W peak), 2x AC 110V, 3x USB-A 18W, 1x USB-C 60W, 2x DC 12V/5A, Car 12V/10A, Wireless 10W
Weight: 14.1 lbs | Dimensions: 11.6 x 7.9 x 7.9 inches
Recharge: Solar (6-9hrs 100W), Wall (6-7hrs), Car (7-8hrs)
Other: Pure sine wave, BMS safety, LCD display, LED light/SOS, 2-year warranty
Pros
- Exceptional portability at 13.3 lbs with sturdy handle
- Pure sine wave output runs sensitive electronics smoothly
- Real-world reliability proven in harsh conditions per user stories
- Multiple recharge options including efficient solar integration
- Intuitive display shows exact battery status and input/output
Cons
- Solar recharge requires 9.5 hours under optimal sunlight
- Limited to 500W continuous for high-demand appliances
- Rare reports of units failing after initial use
The Jackery Explorer 500 Solar Generator is a compact 518Wh portable power station paired with a 100W SolarSaga panel, designed for campers, RVers, off-grid adventurers, and emergency home backup. It delivers 500W continuous AC power (1000W peak) alongside USB, DC, and car ports, powering devices like mini fridges, fans, lights, and laptops without noise or fuel hassles.
Standout features include pass-through charging, allowing simultaneous device powering and recharging, plus a Battery Management System for optimal lifespan. Users praise its endurance in deserts, outages, and sports events, running coolers and lights for hours. Real-world tests show about 7 hours for a 60W device, with solar adding sustainable off-grid freedom.
Build quality impresses with a rugged plastic frame, clear LCD display, and easy-carry handle, weighing just 13.3 lbs in basketball dimensions. It handles 14-104°F operations quietly, outperforming gas generators in portability and eco-friendliness.
Drawbacks include slower 9.5-hour solar recharges and a 500W limit, unsuitable for heavy appliances. Isolated failure reports exist, but most highlight multi-year reliability.
Verdict: Ideal for portable, silent power needs; a top pick for reliable outdoor and backup use.
Capacity: 518Wh (24Ah, 21.6V)
Outputs: 1x AC 500W (1000W peak), 3x USB-A 5V/2.4A, 1x Car 12V/10A, 2x DC 12V/7A
Inputs: AC wall (7.5 hrs full), Car (7.5 hrs), Solar 100W (9.5 hrs)
Weight: 13.3 lbs | Dimensions: 11.8 x 7.6 x 9.2 inches
Other: Lithium-ion battery, pass-through charging, 14-104°F operation, 2-year warranty
Best for camping, RV trips, or blackouts powering under-500W devices. Calculate runtime: 500Wh x 0.85 / device watts (e.g., 7 hrs for 60W fan).
Choose if you value silence, portability over raw power. Pair with SolarSaga for off-grid; wall/car for speed.
Avoid for microwaves or tools over 500W; consider larger models like Explorer 1000.
Pros
- Versatile outputs support phones, laptops, CPAPs, and small appliances at once
- Multiple fast recharging methods keep you powered anywhere
- Reliable safety features protect devices and extend battery life
- High user ratings highlight quality build and value
- Pure sine wave delivers stable power for sensitive gear
Cons
- Not suitable for devices over 500W rated power
- Lithium-ion battery has shorter lifespan than LiFePO4 alternatives
- Requires recharging every three months to maintain performance
The EBL 500W portable power station (model EB500) is a compact 519Wh battery pack designed for campers, off-grid enthusiasts, and anyone needing reliable emergency backup power. Weighing just 14.1 pounds, it fits easily into backpacks or car trunks, making it ideal for outdoor adventures, power outages, or remote work setups.
Standout features include two 110V pure sine wave AC outlets for up to 500W devices, plus USB-A, USB-C PD, DC, car port, and a wireless charging pad, allowing simultaneous powering of smartphones, laptops, CPAP machines, mini-fridges, and more. Users praise its real-world performance for keeping essentials running silently without fumes, with quick recharging via solar panels (6-9 hours), car (7-8 hours), or wall outlet (6-7 hours).
Build quality shines with a durable dark green casing and advanced Battery Management System (BMS) for temperature control and protections, ensuring safe operation. Reviews note solid construction and effective power delivery for everyday needs, though some mention limitations with high-draw chargers.
Drawbacks include avoiding loads over 500W and periodic maintenance like recharging every three months. Overall, this powerhouse earns high marks for portability, versatility, and safety, making it a smart choice for reliable portable energy.
Key Specs: 500W output (1000W peak), 519Wh capacity, 110V AC outlets, weighs 17 pounds, dimensions 11.5"L x 7.9"W x 7.9"H.
Ports: 2 AC, 3 USB-A QC3.0, 1 USB-C PD 60W, 2 DC, 1 car port, 1 wireless pad.
Other: Lithium battery, 2-year warranty, model EB500, color dark green.
Pros
- Multiple ports including wireless charging and PD 60W USB-C for versatile device compatibility
- Lightweight at 12.1 lbs with compact dimensions for easy transport
- User-friendly LCD display and pure sinewave power for safe, clean energy
- Strong build quality praised in reviews for camping and emergencies
- Three recharging methods plus solar compatibility for flexibility
Cons
- Solar panels sold separately, requiring additional purchase for full off-grid use
- Battery not user-replaceable, needing manufacturer support for issues
- Isolated reports of power indicator glitches after initial use
The Schneider OffGrid PPS500 is a versatile 517Wh portable power station designed for campers, outdoor enthusiasts, and homeowners seeking backup power during outages. Weighing just 12.1 lbs, it delivers 500W of pure sinewave power through three AC outlets, USB ports, a wireless charging pad, and more, allowing you to run everything from phones and laptops to small appliances without the noise or fumes of gas generators.
Standout features include its premium LG lithium-ion battery, which maintains over 80% capacity after 1000 cycles, and multiple recharging options like wall, car, or optional solar panels. Real-world performance shines in reviews, with users powering multiple devices over weekend camping trips using only half the battery, and praising the variety of ports and built-in LED light with SOS mode for nighttime visibility.
Build quality feels solid with a metal frame, splash-proof design, and 50% recycled materials, making it durable for rugged use. The intuitive LCD display tracks battery status, while safety features prevent overheating and short circuits. However, solar panels are extra, and the battery isn't user-replaceable.
Overall, the PPS500 excels as a reliable, portable power solution. It's ideal if you want clean energy on the go without bulk, earning high marks for convenience and performance from verified buyers.
Capacity: 517Wh Lithium-Ion (LG cells)
Output: 500W continuous (pure sinewave), 3 AC outlets
Ports: 3 USB-A, 2 USB-C (PD60W & QC18W), DC 5521, wireless pad
Recharge: Wall, car, solar (panels separate)
Weight/Dims: 12.1 lbs, 9.8 x 7.9 x 8 inches
Extras: LCD display, LED light with SOS, 2-year warranty
Schneider OffGrid PPS500 Portable Power Station, AC charging cable, DC charging cable, quick start guide, safety guide, and 2-year warranty. Solar panels (PSP100 or PSP200) sold separately for expanded recharging options.
